Features:
Designed for transportation of luggage, bulky goods, plants, sport equipment, parcels etc.
• Body and roof constructed from 0.9mm corrosion resistant electro-galvanised sheet steel.
• Doors are pad-lockable and can be found at the left side and the back of the trailer for easy loading.
• All doors are pad-lockable and equipped with new heavy-duty hinges for robust usage
• Sides are strengthened by formed hat-sections which prevents drumming and vibration.
• Two adjustable extending supporting back legs to provide levelling and stability when parked on uneven ground
• 7x ring holders to tighten luggage
• Multi-function LED lights
• Heavy-duty coupler
• Spare Wheel holder which is pad-lockable
• Fitted with run-in brakes for maximum safety
• Fitted with 2 Rubax axles.
• Adjustable durable jockey wheel 8 inch
• Including spare wheel 165x13 inch

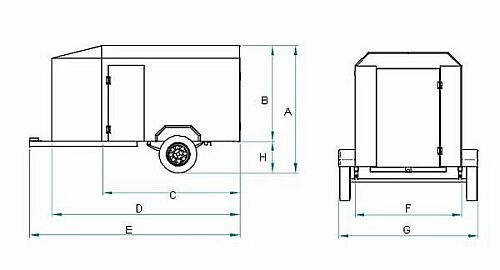

| Dimensions |
| A | Height (over all) | 2060 mm |
|---|
| B | Height (side) | 1660 mm |
|---|
| C | Length (body) | 3610 mm |
|---|
| D | Length (over all) | 4540 mm |
|---|
| E | Width (inside) | 1525 mm |
|---|
| F | Width (over all) | 2045 mm |
|---|
| G | Ground Clearance | 280 mm |
|---|
| Technical Info |
| Tare Mass | 740 kg |
| GVM | 1740 kg |
| Pay Load | 1000 kg |
| Brakes | Run - in |
| Axle Length | 1890 mm |
| Axle Capacity | 1500 kg X 2 |
| Leaf Springs | Rubax Axle |
| Wheels | 195 x 14 inch x 5 Stud |
| Doors |
| Door (rear - height) | 1330 mm |
| Door (rear - width) | 1050 mm |
| Door (side - height) | 1280 mm |
| Door (side - width) | 730 mm |
