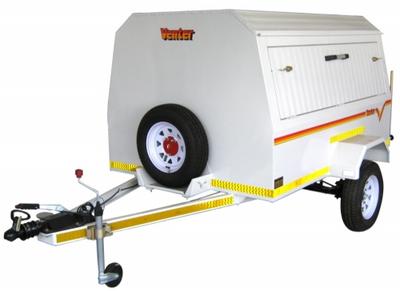

This workshop trailer is robust, easy to tow and has a generous storage capacity. It has a number of distinctive features that make it suitable for various trades and installation industries.
Features
• The sturdily constructed body and floor, (from 0.9mm sheet steel) are corrosion resistant by means of electro-galvanising. (Channels and seams are rust protected with wax).
• Two gas lift-assisted side flaps that are pad-lockable.
• Fold-down side flaps can be used as work surfaces
• Side flaps (height) 410 mm, side flaps (width) 1870 mm
• Multi-function LED lights
• Height adjustable 8 inch Polyurethane and Polypropylene Jockey wheel with double bearings and 500kg load capacity
• Pad-lockable spare wheel bracket
• Optional spare wheel
• 8 off floor-mounted tie-down rings
• Heavy-duty adjustable support legs
• Heavy-duty coupler
• Built-in perforated panel tool rack
• Doors are lockable, dust and waterproof
• Lockable coupler and handbrake chain are fitted
• Including spare wheel 195x14 inch
| Dimensions |
| A | Height (over all) | 1875 mm |
|---|
| B | Height (side) | 1210 mm |
|---|
| C | Length (body) | 2125 mm |
|---|
| D | Length (over all) | 2475 mm |
|---|
| E | Width (inside) | 1530 mm |
|---|
| F | Width (over all) | 2000 mm |
|---|
| G | Ground Clearance | 215 mm |
|---|
| Technical Info |
| Tare Mass | 420 kg |
| GVM | 1100 kg |
| Pay Load | 680 kg |
| Brakes | Run - in |
| Axle Length | 1830 mm |
| Axle Capacity | 1250 kg |
| Leaf Springs | 10 Blade 36 inch |
| Wheels | 195 x14 inch |
| Doors |
| Door (rear - height) | 970 mm |
| Door (rear - width) | 850 mm |
