Venter Modular Trailer
Venter Modular Trailer - Trailers - Commercial Trailers
Left back view
Side view

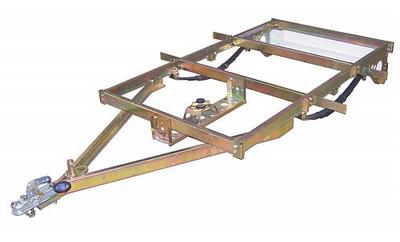

Chassis members assembled
Axle wheels mudguards and floor
Guard rails added

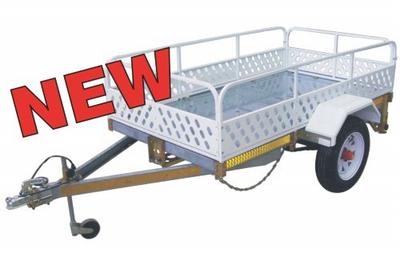

Trailer completly assembled
Price: R 7022.38 Including VAT
Price quoted Ex. Factory,
please enquire about transport costs
Select your region for transport:
Select your region
Eastern Cape [R 1118.22]
Free State [R 1118.22]
Gauteng [R 197.66]
Kwazulu-Natal [R 1118.22]
Mpumalanga [R 1118.22]
Northern Cape [R 1118.22]
Limpopo [R 1118.22]
North West Province [R 1118.22]
Western Cape [R 1118.22]
Add to Quotation
Back to Commercial Trailers
Back to Trailers
Modular design which you can customise to your requirements.
1.Beam axle.
2.Two leaf springs 6 x 36 inch.(including bump stops and brackets.
3.Two support brackets to store trailer in vertical positions.
4.One tail bracket.
5.Reflectors.
6.Number plate light.
7.Two rear lights(including indicators).
8.Lower assembly.
9.One wiring harness with 7 pin male plug.
10.One coupler.
11.Two mudguards.
12.One Venter bolt for height location of jockey wheel.
13.One spare wheel carrier assembly.
14.Two leg holding brackets.
15.Two back stays.
16.All hi-tensile bolts, washers and nyloc nuts.
Optional extras.
1.Plywood Base.
2.Bicycle rack.
3.Side and back rails.
4.Ramp for Motorbike.
5.Spare wheel
Dimensions
A
Height (over all)
990 mm
B
Height (side)
445 mm
C
Length (body)
2080 mm
D
Length (over all)
3125 mm
E
Width (inside)
1130 mm
F
Width (over all)
1650 mm
G
Ground Clearance
250 mm
Technical Info
Tare Mass
200 kg
GVM
700 kg
Pay Load
500 kg
Brakes
No Brakes
Leaf Springs
2 x 6 x 36 inch
Wheels
155x13 inch
Optional
Rails for Modular Trailer
Zinc galvanised base for Modular Trailer
Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
